CNC
Milling
CNC metal milling with the Haas VF-2 — milling, drilling, threading and finishing in one setup. Complex geometries, demanding tolerances, consistent repeatability on industrial parts and custom applications.
Precision Milling
on Every Metal
CNC metal milling at Axinar covers milling, drilling, threading and finishing in one setup. We use a Haas VF-2 vertical machining center, a 3-axis 40-taper mill with a 22.4 kW (30 HP) spindle and an automatic 20+1 tool changer.
Consistent repeatability of ±0.02mm means every part comes out the same, whether it is a prototype or a production run. We deliver excellent surface quality of Ra 0.8, which reduces or eliminates the need for additional finishing.
We machine steel, stainless steel (inox), aluminium, copper, brass and engineering polymers. Combined with laser cutting, press brake and roll bending, we handle integrated fabrication from drawing to finished part.
How we work: The process starts with receiving the 3D model (STEP or IGES) or a 2D drawing with full dimensions and tolerances. The CAM engineer programs the toolpaths in the software, selecting the right tools, speeds and feeds based on the material. Once the quote is approved, the part is clamped on the Haas VF-2 table and machining runs automatically — milling, drilling, threading and finishing in one setup. After completion, every part is dimensionally inspected before delivery. The digital CAM program is archived, so re-orders start without a new setup.
Complex Geometries
3D contours, pockets, threads, precision milling — in a single clamping, without multiple part repositioning.
Industrial Parts
Flanges, bases, bearings, adapters, custom mechanical parts to order.
From Prototype to Series
Same accuracy on 1 or 1000 parts. Digital CAM files = zero setup time on re-orders.

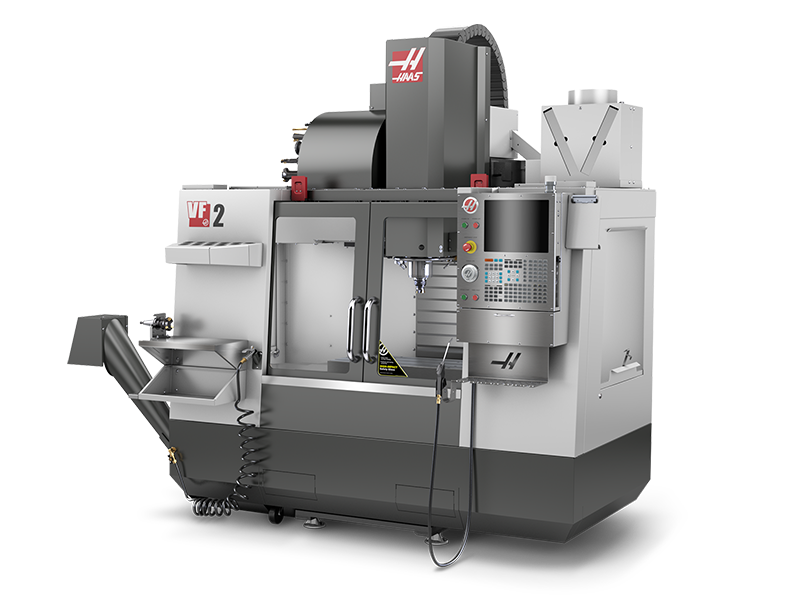

CNC Mill
Haas VF-2
What we
Machine
| Material | Milling | Drilling | Threading | Finishing |
|---|---|---|---|---|
| Steel (S235 / S355 / C45) | ✓ | ✓ | ✓ | ✓ |
| Stainless Steel (Inox 304/316) | ✓ | ✓ | ✓ | ✓ |
| Aluminium (6061 / 7075) | ✓ | ✓ | ✓ | ✓ |
| Copper / Brass | ✓ | ✓ | ✓ | ✓ |
| Engineering Polymers (POM / PA / PE) | ✓ | ✓ | ✓ | ✓ |
Why CNC Milling
at Axinar
Accuracy ±0.02mm
High positioning accuracy and repeatability, ideal for parts with tight tolerances and assemblies.
Complex Shapes
3D contours, pockets, chamfers, radii — in one setup, without multiple fixtures or repositioning.
Surface Quality
Ra 0.8 finish and below. Minimal or no need for secondary processing.
Fast Setup
Digital CAM files = zero preparation time on re-orders. Same program, same result.
Prototypes & Production Runs
From a single prototype to batches of hundreds of parts, with consistent quality in every case.
Request a
Milling Quote
Send us the 3D drawing or technical sketch with dimensions, tolerances and material. We will reply within 24 hours with a detailed quote.
Accepted Files
What We Need
3D model or 2D drawing with tolerances, material, quantity and any special finishing requirements.
