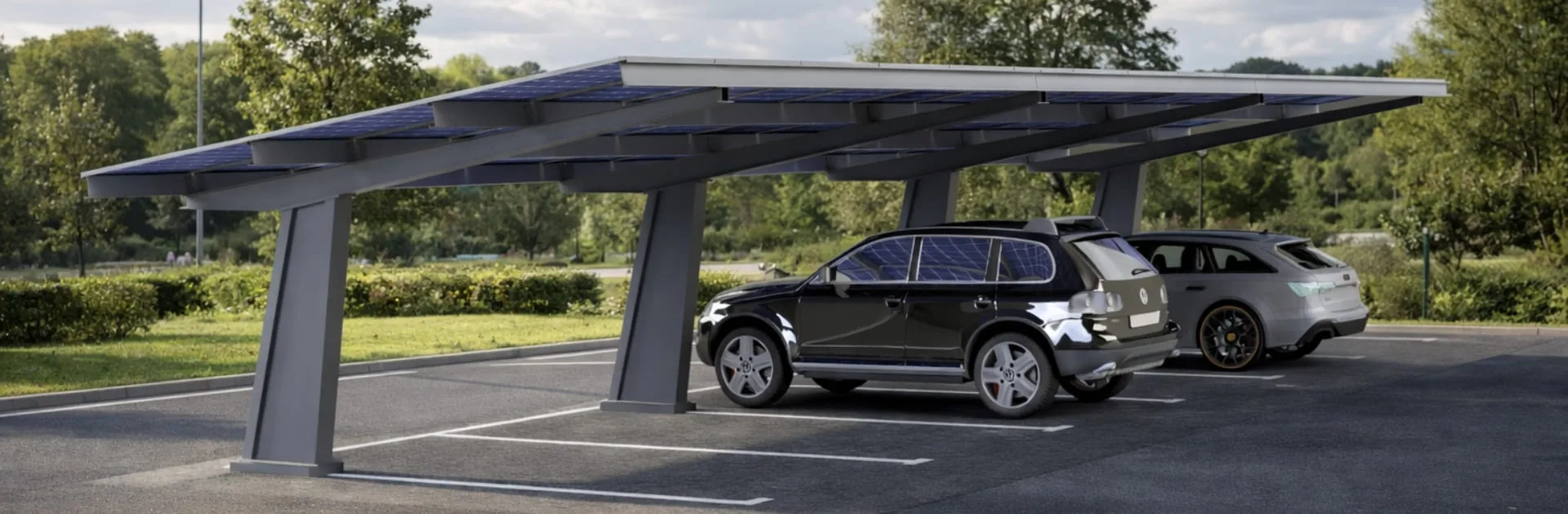

Solar Carport with Photovoltaic Panels
Solar carport by Axinar combining vehicle protection, clean energy generation and modern aesthetics. Bifacial panels, S420GD steel, EV charger ready.
The solar carport by Axinar is a modern, high-value solution that transforms a parking space into an energy-active structure. With minimal and modern aesthetics, it generates clean energy while reducing energy costs.
Thanks to its flexible design, the solar carport with photovoltaic panels adapts to different dimensions, from residences to hotels, businesses and parking lots. A sustainable investment combining architectural simplicity, technology and energy independence. Every project includes a free structural analysis per Eurocodes.
Beyond solar carports, Axinar also manufactures ground-mount PV systems, flat roof mounts and pitched roof mounts.
Solar Carport, Technical Specifications

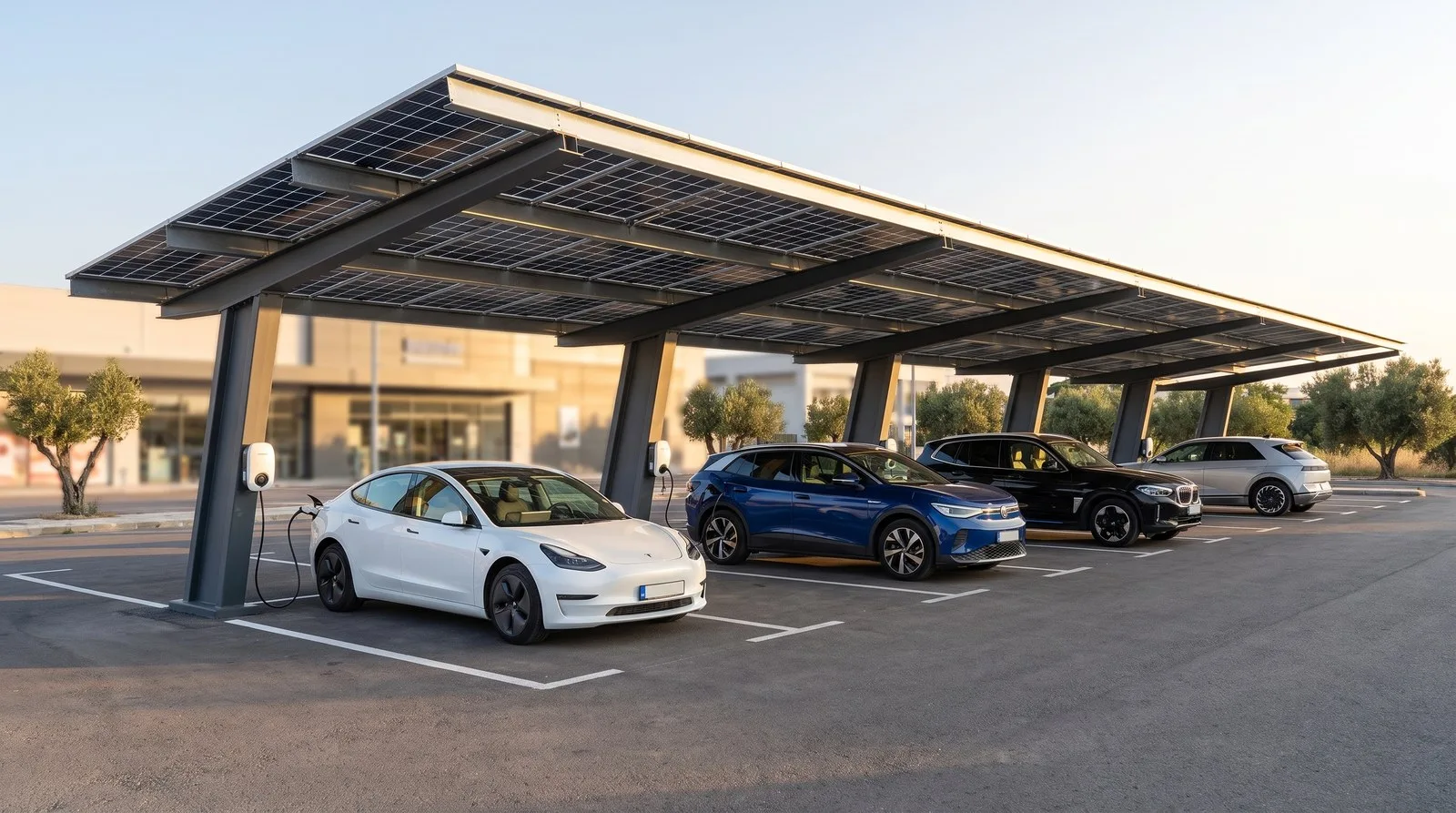

Solar vehicle canopy with bifacial panels and EV charger position.
Solar Carport
| Mounting type | Ground anchor foundation |
| Panel type | Bifacial |
| Steel grade | S420GD |
| Panel rows | 1 (mono-slope) |
| Tilt angle | 8° |
| Max. table length | 50m |
| Corrosion protection | Magnelis® / Hot-dip Galvanized / Electrostatic |
Solar Carport Advantages
Energy Generation
A single 5kWp carport generates 7,000 kWh annually, 120% of the needs of a 6-person household.
Savings
Reduce electricity bills with net metering or net billing. Return on investment in just a few years.
Vehicle Protection
Full protection from sun, rain, 30mm hail and dust. Wind resistance up to 120km/h.
EV Charging
Type2 EV charger position with pre-wired electrical connection for immediate installation of your chosen charger.
Aesthetics
Minimal and modern design that upgrades the aesthetics of any parking space.
Sustainability
Reduced carbon footprint. Increased property value. Sustainable development goals.
Full in-house manufacturing, we handle every production stage with absolute quality control.
24/7 support, immediate technical assistance and fast response to every need.
Expertise, years of experience with solutions tailored to each project.
Quality guarantee, strict checks on every build for absolute reliability.
Solar Carport at an Aegean Resort Hotel
Boutique Hotel, Aegean Island
Solar carport installed at the guest parking area of a boutique hotel. The design respected the Cycladic aesthetic with anthracite powder-coated steel, while the 8° mono-slope tilt maximises energy yield while maintaining a discreet profile. EV charging positions allow guests to charge their vehicles with solar energy during their stay.
| Installed capacity | 40 kWp |
| Parking bays | 12 |
| EV charging positions | 4 × Type2 22 kW |
| System | Solar Carport |
| Annual production | ~58.000 kWh |
| Grid connection | Net metering |
Every project includes a free structural analysis per Eurocodes, signed by a certified civil engineer.
Performance, durability and energy independence in every carport.
Annual energy output per single 5kWp carport
Wind resistance per Greek regulations
EV charger position capacity
Years panel warranty at minimum 85% output
Materials & Durability
S420GD Steel
Galvanised steel frame 3mm thick with 120μm anti-corrosion coating, suitable for coastal areas category C3.
Bifacial PERC
550Wpc panels at 25% efficiency with bifacial technology for 15% greater output. Polycarbonate 10mm with 99.9% UV and 30mm hail resistance.
Extreme Conditions
Resistance to 120km/h winds, 150kg/m² snow and category C seismic action per Greek regulations.
Grid Connection
Supports net metering, net billing and self-consumption. We handle all grid paperwork and engineering study within 48 hours.
What Drives the Cost of a Solar Carport
There is no list price, because no two car parks are alike. These are the five things that move the budget, largest first.
How many bays, and in what layout
A two-car structure in a house yard and a canopy over forty bays at a hotel share neither the steel section nor the foundation. A single row costs less per bay than a double row on a shared column, but the double row wins on coverage per square metre.
The foundation and what lies beneath
On soil, concrete footings of known dimensions do the job. Over an existing slab or asphalt car park the solution changes, and if utilities or a basement run underneath, a geotechnical assessment comes before the column layout is fixed.
The wind and snow zone
The same structure inland and in the mountains does not carry the same section. Snow load in an alpine zone and wind pressure on an island raise the steel weight, and steel weight is the largest part of what the structure costs.
The panels and the charging
Bifacial panels cost more and yield more under an open structure. Provision for an EV charger, conduit and cable routing inside the columns, is cheap now and expensive later, which is why it goes into the design even when the charger arrives years after.
The permit and the square metres
Under forty square metres on a plot that already has a building, a car canopy typically needs no building permit. Above that threshold, or in a protected area, an engineer and a timeline enter the picture, and both cost as much as steel.
Send us the number of bays, the region and what is on the spot today, a yard, a garage or open parking, and we come back with a bill of quantities and a structural report for that specific project.
