SKU: PRO-SOL-000002

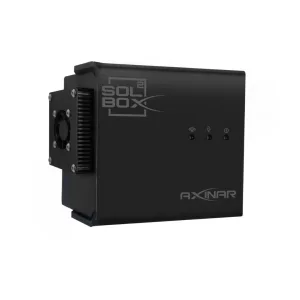

Axinar SolBox
Weight
2.5 kg
SolBox
The SolBox V2 by Axinar is a photovoltaic water heating system that converts any electric water heater into a solar heating system. It uses cables to transfer solar energy from the PV panels on the roof, utilizing it to heat...
The SolBox V2 by Axinar is a photovoltaic water heating system that converts any electric water heater into a solar heating system. It uses cables to transfer solar energy from the PV panels on the roof, utilizing it to heat domestic water through the water heater’s electric resistance element. It operates 365 days a year, without plumbing, without maintenance, achieving up to 100% electricity savings on hot water.
ADVANTAGES
Why choose SolBox for hot water with solar panels
365 days operation
Hot water every day of the year.
Hot water every day of the year.
Flexible installation
Can be installed at any roof angle.
Can be installed at any roof angle.
Multi-storey buildings
Only cables needed, no long pipes.
Only cables needed, no long pipes.
Cloudy days
Supplements heat from mains electricity or boiler.
Supplements heat from mains electricity or boiler.
Listed buildings
Does not alter the architectural appearance.
Does not alter the architectural appearance.
Zero maintenance
No maintenance required throughout its lifetime.
No maintenance required throughout its lifetime.
Winter resistant
Designed for extreme weather conditions.
Designed for extreme weather conditions.
Overheat safe
Does not overheat when not in use.
Does not overheat when not in use.
No plumbing work
No hydraulic modifications required.
No hydraulic modifications required.
Easy installation
By an electrician or plumber.
By an electrician or plumber.
Lightning protection
Built-in surge protection.
Built-in surge protection.
Web App & Smart Schedule
Remote control app, weekly water temperature scheduling.
Remote control app, weekly water temperature scheduling.
PACKAGES
Find the package that suits you
With the SolBox Configurator you select your space type, number of people and needs, and instantly get the ideal package recommendation with panel count, savings estimate and cost.
Available Models SolBox
SKU: PRO-SOL-000001
Axinar SolBox Light version
Weight
2.5 kg
SKU: PRO-SOL-000004
Axinar SolBox Family version
Weight
2.5 kg
SKU: PRO-SOL-000005
Axinar SolBox Pro version
Weight
2.5 kg
TECHNICAL SPECIFICATIONS
SolBox V2 Technical Specifications
The SolBox is an electronic device that converts the voltage from PV panels into the appropriate output to heat water through an electric resistance element. It operates with an MPPT (P&O) algorithm for maximum power extraction, is protected against high voltages and connects to the app via WiFi with SSL encryption. It can operate autonomously, without connection to the electrical grid.
| Specification | Detail |
|---|---|
| Dimensions (W x D x H) | 14.5 x 9.5 x 14.5 cm |
| Water heating | 100 – 500 litres (depending on panels) |
| Max panel connection | Up to 6 PV panels |
| Operating voltage | 70V DC, no inverter needed |
| Algorithm | MPPT (P&O) |
| Water thermometer | Yes |
| Technician diagnostics | Yes, via app |
| Electrical safety | Yes |
| Lightning protection | Yes |
| WiFi connection (SSL) | Yes |
| Grid connection | Optional |
| Hot water programmes | 4 time slots per 24h |
| Alternative heat source | Boiler / buffer tank connection |
| Calendar scheduling | Annual (holidays, public holidays) |
| Warranty | 10 years Axinar |
