Press Brake
CNC Sheet Metal Bending
CNC press brake for precision metal bending with full repeatability. Bending length up to 4000mm, laser angle measurement, complex profiles and multiple bends — in steel, stainless steel and aluminium. Press brake & guillotine shear in-house for end-to-end processing.
Press Brake CNC
Metal Bending
A press brake is the core machine for bending metal sheets to specific angles and profiles. At Axinar we use exclusively CNC press brakes that automatically calculate the bending sequence, maintain a consistent angle and deliver maximum repeatability — even across large production runs.
The Salvagnini B3 and the Gasparini both feature an integrated laser angle measurement system that monitors every bend in real time — eliminating springback and guaranteeing ±0.1° accuracy. Every program is stored digitally for instant recall with no new setup required.
The press brake handles steel, stainless steel, aluminium, galvanised sheet and copper. We also have an in-house guillotine shear — press brake and shear in the same facility means fast production with no inter-site transfers. Combined with our laser cutting, we offer a complete solution from flat sheet to finished part.
Laser Angle Measurement
Salvagnini B3 & Gasparini: real-time angle control with laser. Zero springback, zero scrap parts.
Digital Program Storage
Every program is saved. Re-run without a new setup — ideal for repeat orders.
Laser + Press Brake = Finished Part
Cutting and bending under one roof. One point of contact, no transfers, fast delivery.

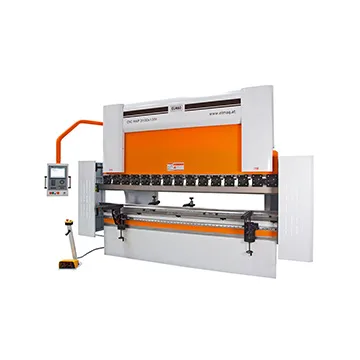

CNC Press Brakes
Press Brake
Materials
| Material | Max Thickness | Max Length | Min Bend Radius |
|---|---|---|---|
| Steel (S235 / S355) | 12mm | 4000mm | 1×t |
| Stainless Steel (Inox) | 10mm | 4000mm | 1.5×t |
| Aluminium | 8mm | 4000mm | 1×t |
| Galvanised | 6mm | 3000mm | 0.8×t |
| Copper | 4mm | 2500mm | 1.5×t |
Why CNC Press Brake
Laser Angle Measurement
Salvagnini B3 & Gasparini measure the bend angle in real time with laser — eliminating springback and guaranteeing ±0.1°.
Repeatability
Every program is stored digitally. The second order comes out identical to the first, with no new setup required.
Complex Profiles
Multiple bends per part, closed profiles, Z & C shapes, trapezoidal — no tooling costs.
Wide Equipment Range
From 60T for small precision parts to 350T/4m for large structures — the right machine for every job.
Minimal Distortion
Uniform pressure distribution along the full bending length. Clean edges, no wrinkles or surface marks.
Complete Solution
Laser cutting, press brake bending, welding, coating — all in-house. One timeline, zero delays.
Request
a Bending Quote
Send us your drawing and we will get back to you within 24 hours with a detailed quote. We accept DXF, DWG, STEP, PDF or even a hand sketch with angles and dimensions.
Accepted Files
What We Need
Drawing or sketch with bend angles, material, thickness and quantity. If you are unsure about bending feasibility, just ask us.
