Metal laser cutting with ±0.1mm accuracy on fiber laser up to 20KW. Sheets up to 4000×2000mm, tubes & profiles — in steel, stainless steel and aluminium, with laser cutting thickness up to 40mm.
Metal laser cutting is the process of cutting metal sheets and profiles with a high-power focused laser beam. At Axinar in Thessaloniki we specialise in sheet metal laser cutting using exclusively fiber laser technology, which ensures minimal thermal distortion, a clean burr-free cutting edge and maximum repeatability — even on large production runs. Compared to older CO2 laser technology, fiber lasers offer significantly higher cutting speeds, lower energy consumption and minimal maintenance cost — which is why they are the modern standard in industrial metal laser cutting.

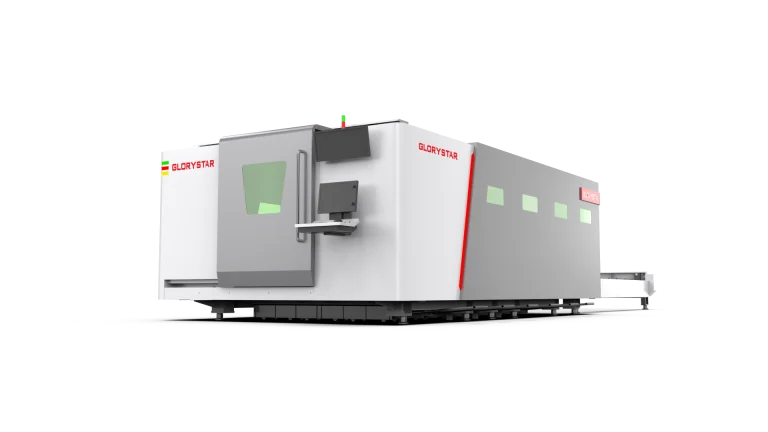

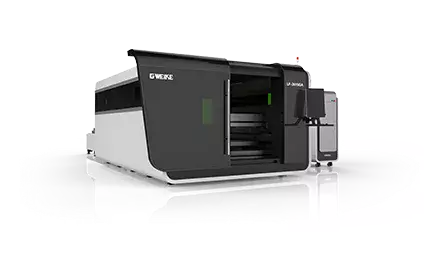

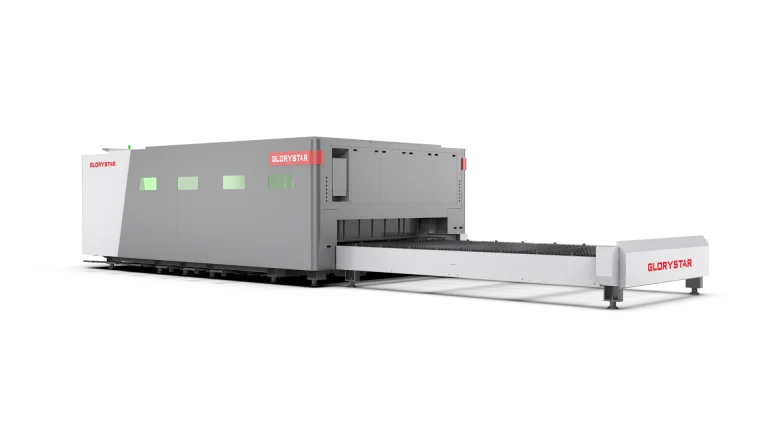

With three CNC laser cutting machines (two GWEIKE 3KW and one Glory Star 20KW with IPG Photonics source) we cover the full range of needs: from thin 0.5mm sheets up to steel laser cutting of 40mm thickness. The cutting bed in sheets of 4000×2000mm means fewer joints, lower risk and faster production, while the cutting speed reaches 150m/min on thin sheets. The laser cutting accuracy of ±0.1mm guarantees a perfect fit even on the most demanding parts, with a minimal heat-affected zone (HAZ).
We handle stainless steel laser cutting (304/316), aluminium laser cutting, galvanised, copper and brass. In addition to flat sheet, we perform tube laser cutting, hollow sections and solid profile laser cutting — tubular, square and round. Applications include laser cutting for steel structures, laser cutting for photovoltaic mounts and laser cutting for industrial parts — complete manufacturing solutions without the need for outsourcing. Learn how metal laser cutting works.
The cost of laser cutting depends on factors such as: material type and laser cutting thickness, drawing complexity (DXF / DWG files), part quantity, nesting optimisation (optimal part placement on the sheet) and additional processing. The laser cutting price varies according to the job — the laser cutting price per metre is provided after a drawing is submitted. Request a free quote for accurate pricing.
Optimised nesting with advanced software — maximum material utilisation, minimum cost per part.
One part or thousands — the same laser cutting accuracy, the same quality. No tooling or mould costs.
Metal laser cutting, bending, welding, coating — all in-house. One point of contact, one timeline, zero delays.
| Material | Max Thickness (20KW) | Max Thickness (3KW) | Flat Sheet | Tubes / Profiles |
|---|---|---|---|---|
| Steel (S235 / S355) | 40mm | 20mm | ✓ | ✓ |
| Stainless Steel (Inox) | 30mm | 12mm | ✓ | ✓ |
| Aluminium | 25mm | 8mm | ✓ | ✓ |
| Galvanised | 20mm | 6mm | ✓ | ✓ |
| Copper | 12mm | 4mm | ✓ | — |
| Brass | 10mm | 4mm | ✓ | — |
Cutting at speeds reaching 150m/min on thin sheets. Short lead times, even on large metal laser cutting quantities.
The fiber laser beam via a high-precision cutting head ensures a narrow kerf and minimal tolerance — ideal for parts that require an accurate fit.
The focused laser beam limits the heat-affected zone (HAZ), preserving the mechanical properties of the material. Burr-free cutting.
CNC laser cutting of complex designs, small holes and fine details — without tooling or mould costs. We accept DXF / DWG files.
Automatic optimal placement (nesting) of parts on the sheet for maximum material utilisation. Less waste, lower laser cutting cost.
Laser cutting on both flat sheets and tubes & profiles (tube laser cutting). One point of contact for every metal laser cutting need.
Send us drawings or photos and we will get back to you within 24 hours with a detailed metal laser cutting quote. We accept DXF, DWG, STEP, PDF files or even a hand-drawn sketch.
Drawing or sketch, material, thickness, quantity. If you are not sure, we will guide you.
