Axinar Terrasol 2V | Flat Roof PV Mounting System
Axinar Terrasol 2V: flat roof PV mounting system, two rows (2V). Greek manufacturing, galvanized, bolted to the concrete slab, 15°-25° tilt, compact design. From 4 panels, in steps of 2.
SKU AX-PV-T2V · Designed and built in Thessaloniki
Version · Axinar Terrasol 2V | Flat Roof PV Mounting System
Manufacturer warranty, serviced by our own technical department
14-day right of withdrawal
Shipping quoted on request, delivery to the building entrance
2310 808 159 · Monday to Friday, 08:00 to 16:00
PV Mounting Systems

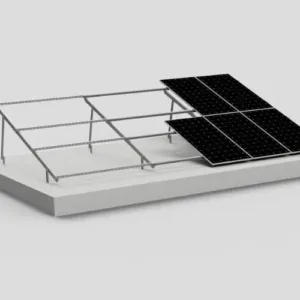

Axinar Terrasol 2V: flat roof PV mounting system, two rows (2V)
Greek manufacturing, galvanized, bolted to the concrete slab, 15°-25° tilt, compact design. From 4 panels, in steps of 2.
2 panels portraitPanel arrangement
2Panel rows
15° - 25°Tilt angle
Description
PV mounting system for flat concrete roofs, 2V configuration, the same structure used in ground installations. Minimum 4 panels, in steps of 2.
In-house manufacturing
How This Mount Was Made
All processes happen at our facilities in Thessaloniki, from steel plate to surface protection.
Specifications
- Mounting surface
- Flat roof, concrete slab
- Fixing type
- Bolted to the concrete slab, 2 fixing points
- Panel type
- Monofacial & Bifacial
- Panel arrangement
- 2 panels portrait
- Panel rows
- 2
- Tilt angle
- 15° - 25°
- Steel
- S320GD, galvanized DX51D Z275
- Base width
- 2,380 mm
- Rear edge height
- 1,664 mm (at 20°)
- Reference panel
- 2,278 × 1,134 × 30 mm
- Panels per section
- 4 to 36, in steps of 2
- Design wind speed
- up to 33 m/s
- Design snow load
- up to 2.5 kN/m²
- Added roof load
- 5 - 10 kg/m² with bolted fixing
- Structural analysis
- Eurocodes 1, 3 and 7, free of charge per project
- Warranty
- 10 years on the steel structure and the galvanizing
- Service life
- 25+ years
Support
A written quote with delivery time for the quantity you need.
