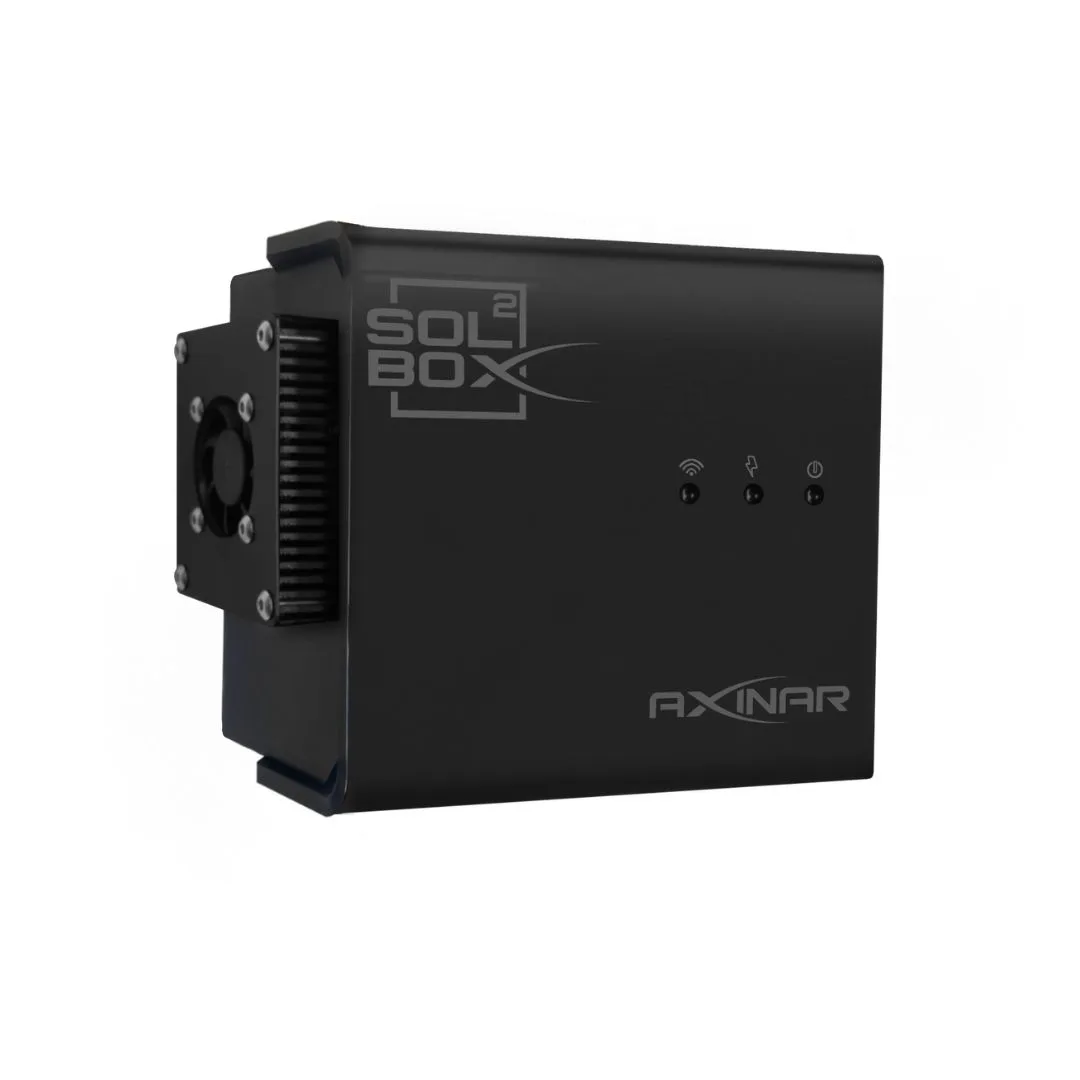

Axinar SolBox
The SolBox is an innovative electronic device that converts the voltage from photovoltaic panels to the appropriate output to heat water through electrical resistance. It incorporates advanced MPPT (P&O) algorithm for maximum power output from the panels
The Package includes:
• The SolBox device
• Access to online application for remote control and monitoring
For more options or configurations, please contact us
SKU PRO-SOL-000002 · Designed and built in Thessaloniki
Version · Axinar SolBox
SolBox
Axinar SolBox
The SolBox is an innovative electronic device that converts the voltage from photovoltaic panels to the appropriate output to heat water through electrical resistance. It incorporates advanced MPPT (P&O) algorithm for maximum power output from the panels The Package includes: The SolBox device Access to online application for remote control and monitoring For more options or configurations, please contact us
Description

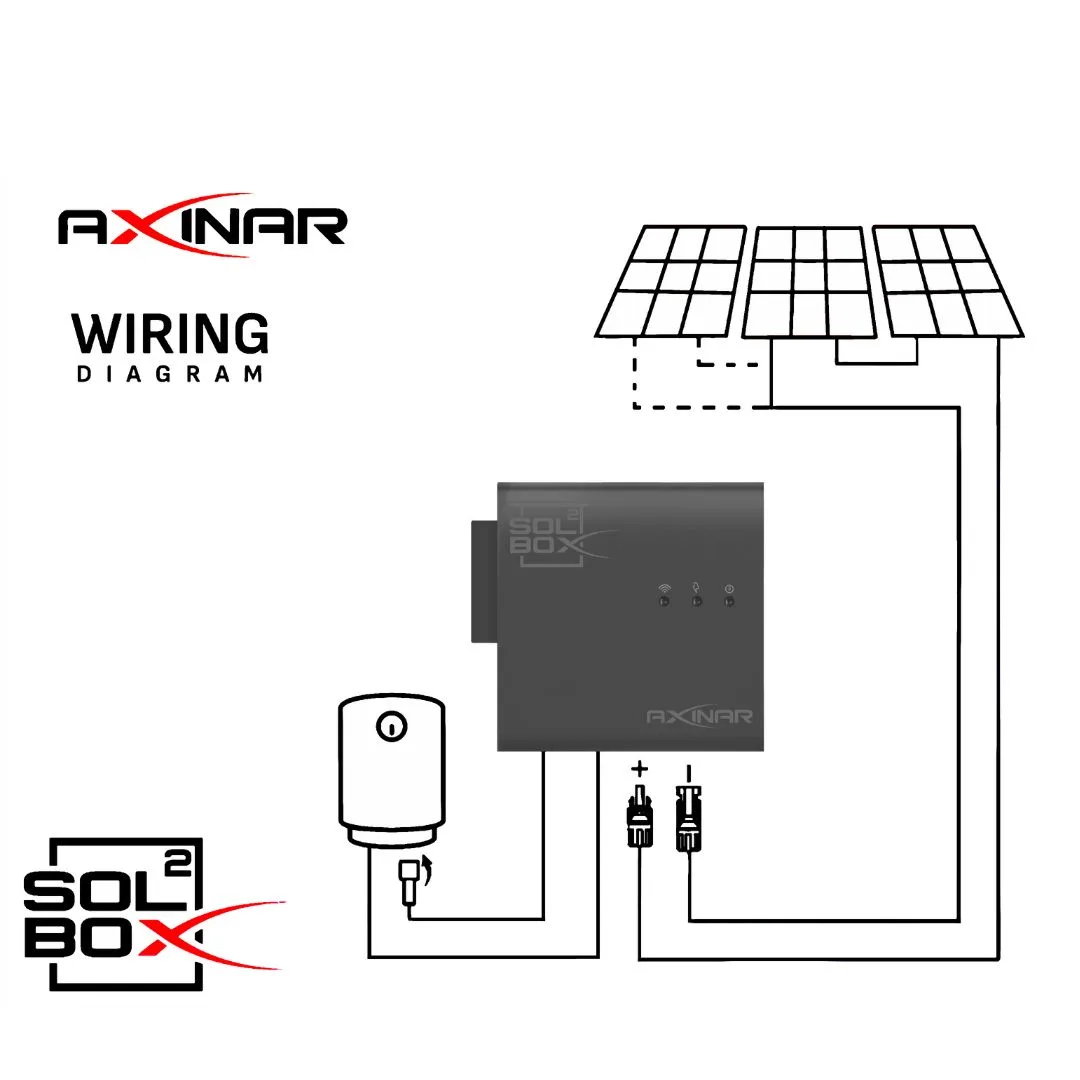

Using cables to transfer solar energy from the photovoltaic panels to the roof, the SolBox harnesses this energy to heat the water in the boiler
Key Features:
- •Dimensions (cm): L x W x H → 14.5 x 9.5 x 14.5
- •Heating capacity: From 100 to 500 liters of water
- •Maximum connection: Up to 6 photovoltaic panels
- •Low operating voltage (70V): Safe use without the need for an inverter

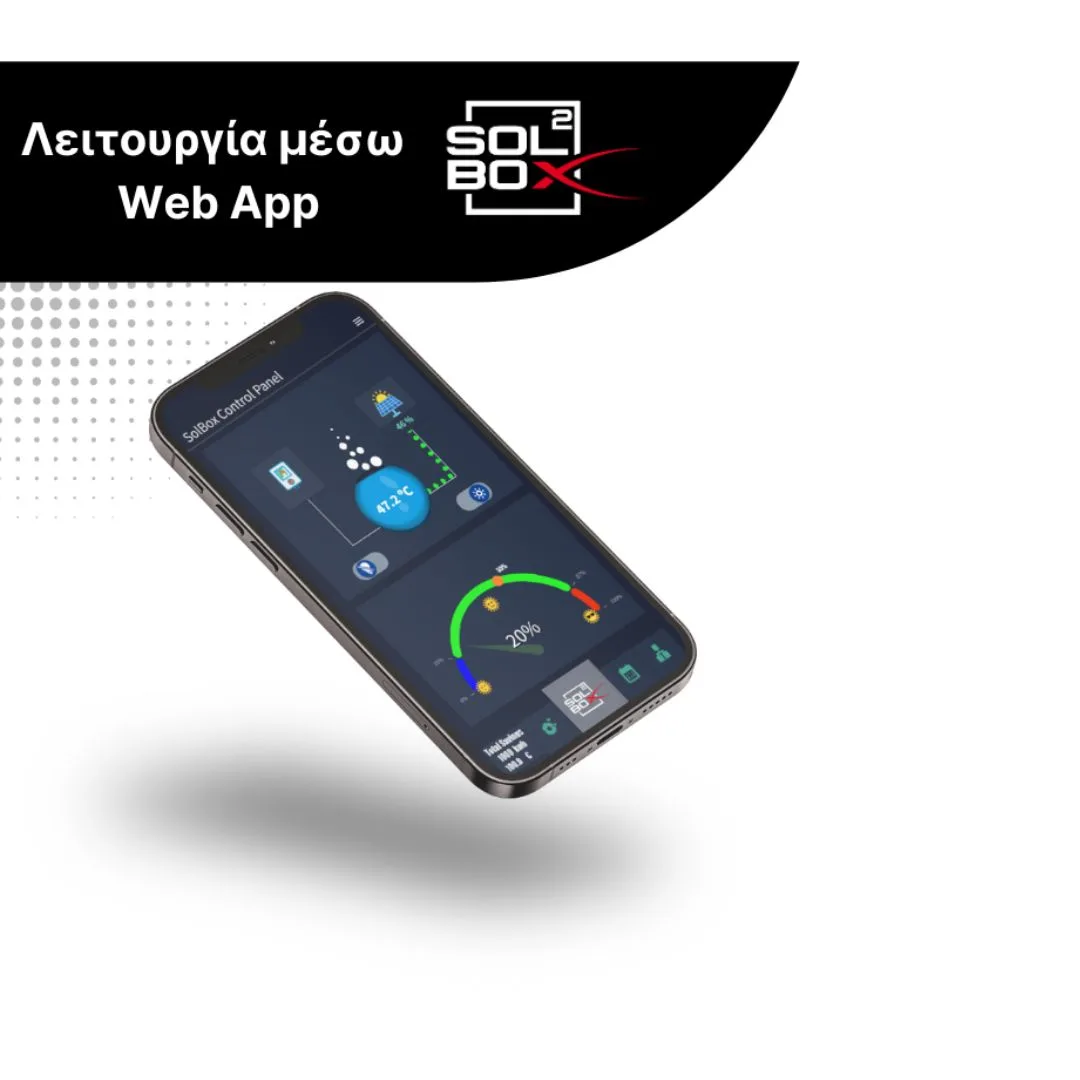

- •Smart monitoring: Report statistics and fault notifications via app
- •Water temperature sensor
- •Diagnostic access for technical support via app
- •Electrical safety features
- •Surge and lightning protection
- •WiFi connectivity
- •Connection to the electrical grid
- •4 programmable hot water schedules (24-hour basis)
- •Integration with alternative heat sources (e.g., boiler, buffer tank, etc.)
- •Annual calendar-based scheduling for automatic shutdown during public or custom holidays
- •Subsidized: Included in the "ExoEconomy" program
What is included and what you need on top
Inside the box
- The SolBox unit, with a pre-fitted output cable of about 1.5 m
- External thermometer, with a cable of about 1.5 m
- Manual
- Installation template
- 2 connectors for the photovoltaic panels
- 4 screws with wall plugs
- Power supply
- Sticker
- Access to the online app for control and monitoring
You also need
- Photovoltaic panels from 450 W to 720 W, 2 to 6 of them
- Mounting structure for a tiled roof or a flat roof
- A heating element compatible with the SolBox
- A safety thermostat, it is mandatory
DC cable of 4 mm² or 6 mm² is available from Axinar, depending on the distance to the panels. If you prefer a complete kit with panels, mounting and heating element, see the Light, Family and Pro versions.
How many panels you need
Self-powering covers up to 2 panels in series or 2 + 2. Beyond that the 12 V / 3 W supply included in the box is used.
Size your own system
The configurator suggests the number of panels and the tank size based on your location and your hot water needs.
SolBox configuratorHow This Product Was Made
All processes happen at our facilities in Thessaloniki, from raw sheet metal to packaging.
Specifications
- Weight
- 2.5 kg
- Net metering
- Unaffected, the SolBox is not connected to the utility grid
Sizing
| Panel configuration | What it covers | Matching version |
|---|---|---|
| 2 panels in series | 150 litres in summer, self-powered | SolBox Light |
| 2 + 2 panels | 200 litres with operation extending into spring and autumn, or 150 litres under partial cloud | – |
| 3 panels in series | 150 and 200 litres comfortably in summer | SolBox Family |
| 6 panels, 3 + 3 in series | Maximum output of the unit. 300 litres under partial cloud and the longest operating season | SolBox Pro |
Support
A written quote with delivery time for the quantity you need.
Request a quoteFrequently asked questions
The SolBox is not a solar water heater. It uses solar energy to heat the water in the electric water heater you already have. It takes the current from the photovoltaic panels, conditions it and feeds it to the heating element of the tank. No inverter and no plumbing work are needed.
Any electric water heater. Tanks above 150 litres are recommended. The existing heating element usually works, and if it does not match the requirements of the SolBox the output is reduced until it is replaced.
Any panel from 450 W to 720 W, with no restriction on brand or type. Between 2 and 6 panels, depending on tank size and how much of the year you want it to cover.
The system delivers as much energy as it can and the rest is topped up automatically by the alternative source, a boiler or the grid. You do not switch valves and you do not change any setting.
No. The SolBox stops transferring energy as soon as the water reaches the temperature you set, so there is no boiling, no tank wear and no cracked enamel.
About 40% less than a conventional solar system. There are no fluids, no heavy tank to lift onto the roof tiles and no pipework, only cabling.
No. The SolBox is not connected to the utility grid, it runs purely on its own panels.
A 10 year warranty and an estimated service life of 25 years. It is designed and built in Greece, so the board is repaired by us.
