Axinar Abar Pellet Storage Tank 310lt with Conical Shape & Rotating Feed Lid
The Axinar Abar pellet tanks are designed to deliver reliable pellet storage, easy installation, and optimized fuel flow in any pellet heating system.
SKU PRO-DEX-000001 · Designed and built in Thessaloniki
Version
Manufacturer warranty, serviced by our own technical department
14-day right of withdrawal
Shipping quoted on request, delivery to the building entrance
2310 808 159 · Monday to Friday, 08:00 to 16:00
Pellet Boilers
The Axinar Abar pellet tanks are designed to deliver reliable pellet storage
Easy installation, and optimized fuel flow in any pellet heating system.
Description

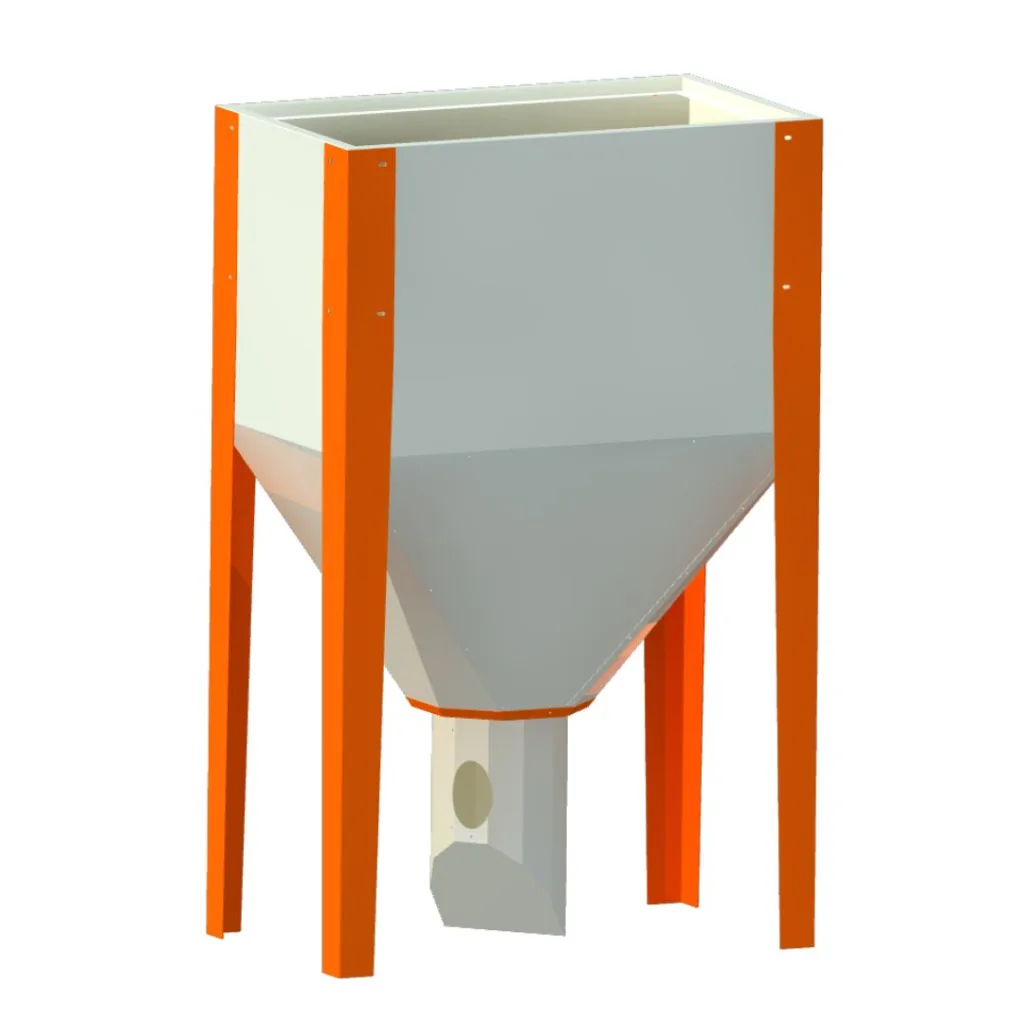

The Abar 310L is a metal pellet storage tank with a conical design to ensure smooth pellet flow towards the auger, and a 360° rotating feed lid for user convenience. The tank is built from electrostatically painted sheet metal for long-term durability and dust protection. Its compact packaging and ease of transport make installation quick and efficient.
Details:
- Capacity: 310L / 200kg
- Dimensions (HxWxD): 1200 x 940 x 480 mm
- Electrostatically coated steel for long-lasting durability
- 360° rotating feed lid for ergonomic loading
- Conical base for ideal fuel flow to auger
- Compact packaging – easy transport & installation
In-house manufacturing
How This Product Was Made
All processes happen at our facilities in Thessaloniki, from the first sheet metal to packaging. No outsourcing.
01 — DESIGN
R&D / Mechanical Design
3D modeling, DFM optimization.
→02 — CUTTING
Laser Cutting
Fiber laser 20kW on steel up to 40mm for body sheets.
→03 — FORMING
Press Brake
7-axis Delem CNC for precise shell and heat-exchanger bends.
→04 — PRECISION
CNC Milling
Haas VF2 for precision holes, mechanism flanges and threading.
→05 — WELDING
MIG/TIG Welding
Fronius pulse welders for water-vessel sealing and long-term durability.
→06 — WELDING
Laser Welding
3kW laser for clean, narrow seams on visible surfaces.
→07 — FINISHING
Deburring
Burr removal and surface preparation before powder coating.
→08 — COATING
Powder Coating
Qualicoat powder coating, 15+ years outdoor durability.
→Specifications
- Weight
- 15 kg
- Dimensions
- 120 × 94 × 48 cm
Support
A written quote with delivery time for the quantity you need.
